Torx screws help you achieve stable fastening when assembly accuracy, reliable torque transfer, and corrosion resistance matter. However, choosing the wrong drive type, stainless steel grade, or screw dimensions can cause installation difficulties, premature corrosion, and inconsistent assembly quality. These problems become particularly important in electronics, medical devices, precision instruments, and automated production lines, where small components must fit accurately and remain secure during operation.

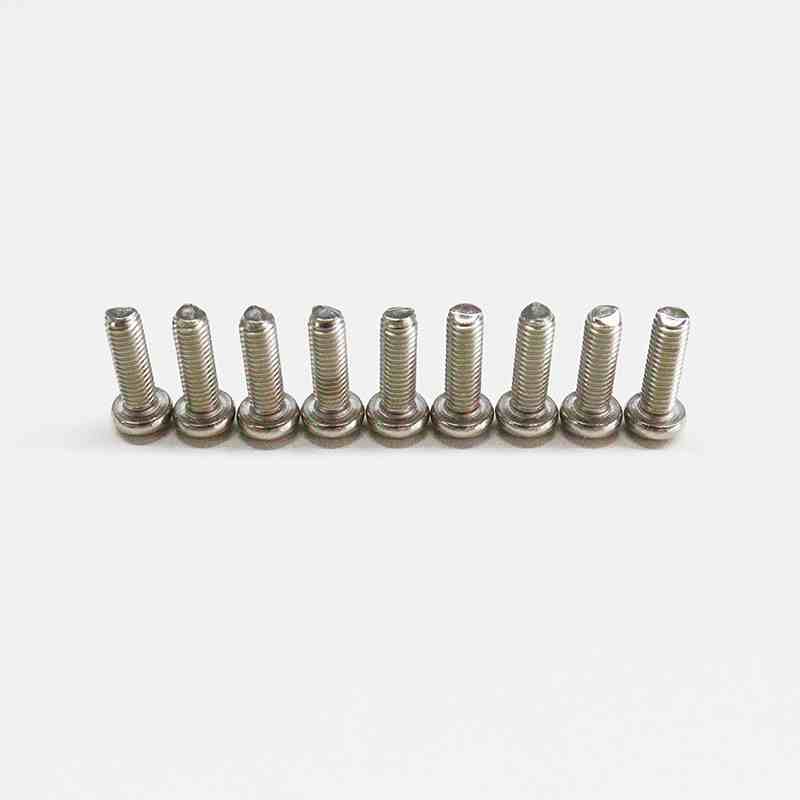

Shenhu Precision Parts (Hong Kong) Limited supplies ISO 14583 Torx pan head screws designed for precision fastening applications. Available material options include SUS304 and SUS316 stainless steel, while the product range covers M2–M8 thread sizes and lengths from 3 to 100 mm. By understanding the product’s specifications, manufacturing process, and application requirements, you can select Torx screws that better match your equipment design and production needs.

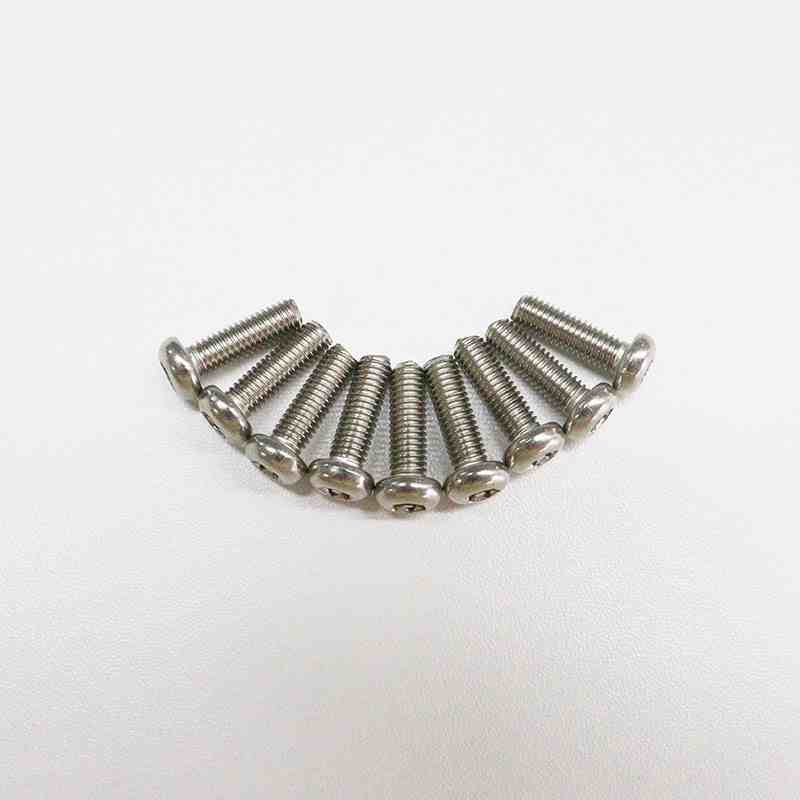

What Are ISO 14583 Torx Screws?
ISO 14583 Torx screws are machine screws featuring a hexalobular internal drive and a pan head. The six-lobed drive, commonly called a Torx drive, engages with a matching driver to transfer rotational force during installation.
Unlike Phillips screws, which use a cross-shaped recess, Torx screws offer a different drive geometry that can improve driver engagement when the correct tool and installation settings are used.
Key features of Shenhu’s ISO 14583 Torx pan head screws include:
-
Hexalobular drive: Supports stable engagement with a compatible Torx driver.
-
Pan head design: Provides a broad bearing surface for distributing clamping load across the supported material.
-
Metric threads: Uses metric coarse threads with a stated 6g tolerance.
-
Stainless steel construction: SUS304 and SUS316 options help address different corrosion-resistance requirements.
-
Precision manufacturing: Cold forming and thread rolling support consistent component geometry and thread production.
These features make the screws suitable for applications that require controlled assembly and dependable mechanical fastening.
Torx Screws Specifications and Material Options
Before selecting a screw, you should confirm its dimensions, material grade, strength requirements, and operating environment. Shenhu provides the following specifications for its ISO 14583 product.
|
Parameter |
Specification |
|---|---|
|
Standard |
ISO 14583 |
|
Head type |
Pan head |
|
Drive type |
Internal hexalobular (Torx) |
|
Material |
SUS304 (A2-70), SUS316 (A4-70); optional 303, 316L, 201 |
|
Size range |
M2–M8 |
| Length range |
3–100 mm |
| Thread |
Metric coarse, full thread, 6g tolerance |
| Stated mechanical properties |
Tensile strength ≥700 MPa; hardness HV 220–320 |
| Surface finish |
Natural passivation |
| Manufacturing process |
Precision cold forming and thread rolling |
Confirm the required property class, dimensional tolerances, and test documentation with the supplier for your specific configuration.
Choosing 304 or 316 Stainless Steel Torx Screws
The correct stainless steel grade depends on the environment, exposure conditions, and performance requirements.
SUS304 stainless steel
-
Suitable for many indoor assemblies and general industrial applications.
-
Commonly used in electronic housings, precision instruments, and equipment enclosures.
-
Offers corrosion resistance for a wide range of everyday operating environments.
SUS316 stainless steel
-
Offers improved resistance to chloride-related corrosion compared with SUS304 in many environments.
-
Worth considering for equipment exposed to moisture, certain chemicals, or coastal conditions.
-
May suit applications with more demanding corrosion-resistance requirements.
Neither grade is universally corrosion-proof. You should evaluate the actual chemical exposure, temperature, cleaning procedures, and maintenance conditions before finalizing the material.
Torx Screws Applications in Precision Industries
Shenhu’s ISO 14583 pan head screws can support several industrial fastening scenarios.
Electronics and Communication Equipment
Electronic devices often contain compact assemblies with limited installation space. M2–M4 Torx screws may suit smaller housings or internal components when the engineering drawings specify these dimensions.
The internal star drive can also support repeatable automated installation when the driver, torque settings, and fastening process are properly controlled.
Medical Devices and Precision Instruments
Medical equipment and precision instruments require compatible materials, controlled dimensions, and reliable assembly. Stainless steel Torx screws can be considered for instrument housings, equipment frames, and other mechanical connections.
However, the screw’s material alone does not establish suitability for direct patient contact, sterilization, or a regulated medical application. You should verify the complete device requirements before procurement.
Outdoor Equipment and Industrial Machinery
Outdoor equipment may experience moisture, temperature changes, and environmental contaminants. Selecting the appropriate stainless steel grade and surface treatment can help manage corrosion risks.
For industrial machinery, the pan head provides a practical bearing surface, while the Torx drive supports tool engagement during assembly and maintenance.
Torx Screws vs. Phillips Screws: Which Should You Choose?
Both drive types serve common fastening needs, but their engagement characteristics differ.
|
Comparison |
Torx Screws | Phillips Screws |
|---|---|---|
|
Drive geometry |
Six-lobed internal recess | Cross-shaped recess |
|
Tool engagement |
Requires a matching Torx driver | Uses a compatible Phillips driver |
| Torque transfer | Supports stable engagement with a correctly matched tool |
Performance depends on tool fit and installation conditions |
| Assembly lines | Suitable for controlled, automated fastening |
Also widely used in automated and manual assembly |
| Best selection factor | Drive specification, torque requirements, and assembly process |
Existing tooling, application requirements, and cost |
Choose Torx screws when the design specifies a hexalobular drive or when your assembly process benefits from its engagement characteristics. If your equipment already uses Phillips fasteners, consider tooling compatibility and maintenance requirements before changing the design.
How to Select the Right ISO 14583 Torx Screws
Follow these steps before requesting a quotation from Shenhu.
-
Confirm the standard and head type. Check whether ISO 14583 pan head screws match your engineering drawing.
-
Specify dimensions. Identify the required thread diameter, screw length, and installation clearance.
-
Choose the material. Compare SUS304 and SUS316 against your corrosion exposure and operating conditions.
-
Define mechanical requirements. Confirm the required strength, hardness, clamping load, and installation torque with your engineering team.
-
Check surface finish and documentation. Request relevant material certificates, inspection records, and test reports where required.
-
Validate samples before production. Check dimensional fit, driver engagement, installation performance, and compatibility with the assembled components.
This process helps reduce specification mismatches and makes supplier evaluation more straightforward.
Why Choose Shenhu for Torx Screws?
Shenhu Precision Parts (Hong Kong) Limited has a history dating back to 1984 and more than 40 years of fastener manufacturing experience. The company reports operating over 100 advanced machines with an annual production capacity of 500 million pieces.
Its stated quality management certifications include IATF 16949, ISO 9001, and ISO 45001. These systems are relevant to quality management and operational processes; you should request current certificates and verify their scope when evaluating a supplier.
Shenhu also offers a one-stop service covering design, production, and delivery. For procurement teams, this can simplify communication when reviewing standard fasteners or discussing customized requirements.
When requesting a quotation, provide your drawing, material grade, dimensions, estimated order quantity, and any inspection or packaging requirements. This information helps the supplier assess feasibility and prepare a more relevant proposal.
FAQ
1. What sizes are available for ISO 14583 Torx pan head screws?
The stated range is M2–M8, with lengths from 3 to 100 mm. Confirm the availability of your exact diameter, length, and drive size with Shenhu before ordering.
2. Are stainless steel Torx screws suitable for outdoor use?
They can be suitable for many outdoor applications, depending on the material grade, environmental exposure, and maintenance conditions. SUS316 may offer an advantage in chloride-rich environments, but the final selection should reflect actual service conditions.
3. Can I request custom Torx screws from Shenhu?
Shenhu provides standard and custom fastener solutions. Submit your drawings, material requirements, dimensions, and target quantities to determine whether your requested configuration can be manufactured.
Conclusion
Choosing the right Torx screws requires more than matching a drive type. You should consider the ISO 14583 standard, pan head geometry, stainless steel grade, dimensions, mechanical requirements, and assembly conditions together. Shenhu Precision Parts (Hong Kong) Limited offers ISO 14583 Torx pan head screws in SUS304 and SUS316 options, with stated sizes from M2 to M8 and lengths from 3 to 100 mm. By confirming your technical requirements before ordering, you can make a more informed purchasing decision and improve compatibility with your application.
Request a quotation from Shenhu: Contact Shenhu about ISO 14583 Torx pan head screws. Share your drawings, material preference, dimensions, and estimated quantity to discuss product availability and customization options.
