When you need reliable fastening in compact assemblies, Socket head cap screws can simplify installation while maintaining secure clamping. However, using a separate screw, flat washer, and spring washer increases assembly steps and creates more opportunities for missing components or incorrect installation. A pre-assembled DIN 912 combination screw solves this issue by integrating all three parts into one fastening unit. Shenhu Precision Parts (Hong Kong) Limited manufactures precision fasteners with more than 40 years of experience, supporting applications in machinery, electronics, automotive assembly, medical equipment, communication, and new energy systems.
Why Choose DIN 912 Socket Head Cap Screws?
A DIN 912 socket head cap screw uses an internal hex drive and cylindrical head, allowing you to apply torque efficiently when installation space is limited. For this combination screw, Shenhu integrates the screw with a flat washer and an open spring washer before delivery.
The integrated design gives you several practical advantages:
- Faster installation: The washers arrive pre-mounted, reducing component handling.
- Secure fastening: The spring washer maintains preload and helps reduce loosening caused by vibration.
- Load distribution: The flat washer spreads clamping pressure and helps protect the workpiece surface.
- Compact assembly: The internal hex drive works well in restricted installation areas.
- Precision production: Grade A dimensional accuracy and 6g thread tolerance support consistent assembly.
The product follows the DIN 912 standard for hex socket cylindrical head screws. Its partial thread length is limited to ≤2× pitch, while the screw tip uses chamfering or rolling, with rolled tips available for sizes up to M4.

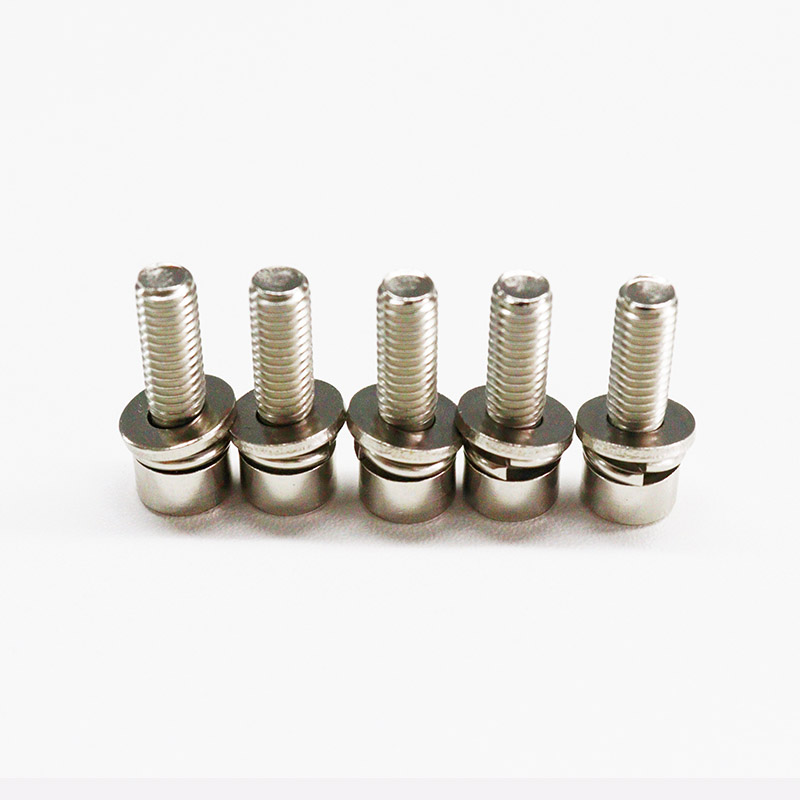

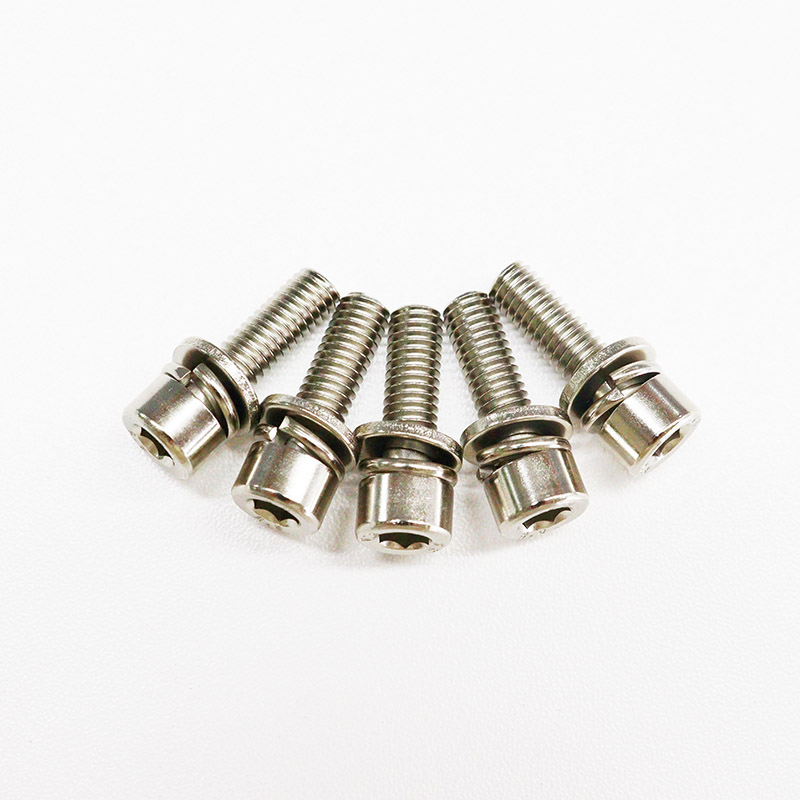

Socket Head Cap Screws with Flat and Spring Washers
Unlike a conventional socket head cap screw supplied separately from its washers, this 3-piece combination screw arrives as a pre-assembled unit. The structure consists of a DIN 912 socket head screw + flat washer + spring washer.
This configuration is particularly useful when you want to standardize assembly operations. Instead of picking three separate components, you can install one ready-to-use fastening unit.
| Feature | Standard Socket Head Cap Screw | Shenhu DIN 912 Combination Screw |
|---|---|---|
| Screw type | Socket head cap screw | DIN 912 socket head cap screw |
| Washer | Separate | Flat + spring washer pre-assembled |
| Drive | Internal hex | Internal hex |
| Thread tolerance | Varies | 6g |
| Partial thread | Varies | ≤2× pitch |
| Vibration resistance | Depends on assembly | Spring washer supports preload |
| Installation | Multiple components | One pre-assembled unit |
| Precision | Depends on supplier | Grade A production |
Precision Manufacturing for Industrial Fastening
Shenhu applies cold heading and thread rolling processes to manufacture precision fasteners. The company operates more than 100 advanced machines and reports an annual production capacity of approximately 500 million pieces.
For buyers evaluating a DIN 912 combination screw supplier, manufacturing consistency matters because thread accuracy, washer positioning, and dimensional control directly affect assembly performance.
Shenhu also maintains certified management systems including:
- IATF 16949 for automotive quality management
- ISO 9001 for quality management
- ISO 45001 for occupational health and safety
- EU RoHS compliance achieved for its products during its technology development
- More than 40 years of fastener R&D and manufacturing experience
These capabilities support customers that require repeatable fastening performance rather than simply low-cost standard hardware.
Where Can You Use DIN 912 Combination Screws?
You can use these socket head cap screws with washers in assemblies where reliable clamping, installation efficiency, and dimensional consistency are important.
Typical applications include:
- Mechanical equipment: Machine frames, precision mechanisms, and industrial assemblies
- Electronic equipment: Enclosures, control systems, and compact components
- Automotive assembly: Components requiring controlled fastening and vibration resistance
- New energy equipment: Battery-related equipment and energy storage assemblies
- Photovoltaic systems: Equipment structures and supporting components
- Medical equipment: Precision assemblies where consistent fastening is required
- Communication equipment: Compact hardware and equipment enclosures
Shenhu’s broader fastener portfolio also serves lithium battery, military, and other industrial applications where material selection and corrosion resistance are important.
How to Select the Right Socket Head Cap Screws
Before ordering a DIN 912 combination screw, you should confirm the following specifications:
- Define the screw standard: Confirm whether DIN 912 or its corresponding ISO 4762 specification meets your assembly requirements.
- Select the required size: Match the screw diameter and length to your joint design and available installation space.
- Check thread requirements: Confirm the 6g thread tolerance and whether partial or full threading suits your application.
- Verify washer dimensions: Check the flat washer inner and outer diameters and spring washer configuration.
- Confirm material and finish: Select stainless steel, carbon steel, or an appropriate anti-corrosion coating according to the operating environment.
- Discuss production requirements: For OEM or repeat orders, confirm dimensions, tolerances, packaging, and required quantities with Shenhu.
This process helps you avoid compatibility problems before production and makes it easier to standardize fastening across different assemblies.
FAQ
1. What are socket head cap screws?
Socket head cap screws are fasteners with a cylindrical head and internal hexagonal drive. The design allows torque to be applied with an Allen-type key while requiring relatively little access space around the fastener head.
2. What makes Shenhu’s DIN 912 combination screw different?
Shenhu’s product combines a DIN 912 socket head screw, flat washer, and spring washer into one pre-assembled unit. This reduces separate component handling and provides a ready-to-install fastening solution.
3. Are these screws suitable for vibration-prone applications?
The integrated spring washer provides continuous elastic preload, which helps resist loosening under vibration. You should still select the appropriate material, dimensions, tightening torque, and joint design according to your specific application.
Conclusion
Choosing the right Socket head cap screws can improve both fastening reliability and assembly efficiency. Shenhu Precision Parts combines DIN 912 compliance, Grade A precision, 6g thread tolerance, pre-assembled flat and spring washers, and more than 40 years of fastener manufacturing experience to support demanding industrial applications. With IATF 16949, ISO 9001, and ISO 45001 certifications, plus production capacity of about 500 million pieces annually, Shenhu provides a practical option when you need consistent Socket head cap screws for machinery, electronics, automotive, medical, new energy, and other precision assemblies.
CTA
If you need DIN 912 socket head cap screws with pre-assembled flat and spring washers, contact Shenhu with your required size, material, finish, quantity, and application. The team can help you confirm the appropriate specification and discuss standard or custom production requirements.
