Why Choose the Right Pan Head Screws?
Pan head screws can solve a common fastening problem: you need secure clamping without putting excessive pressure on the material surface. However, selecting the wrong head size, washer configuration, material, or thread tolerance can lead to surface damage, loosening, corrosion, or inconsistent assembly.
For industrial buyers, the decision goes beyond screw dimensions. You need predictable performance, traceable quality, suitable materials, and a supplier capable of maintaining consistency across large production volumes. Shenzhen Shenhu Fasteners Industrial Co., LTD combines more than 40 years of fastener manufacturing experience with IATF16949, ISO9001, and ISO45001-certified quality and management systems.
DIN 7985 Pan Head Screws for Precision Assembly

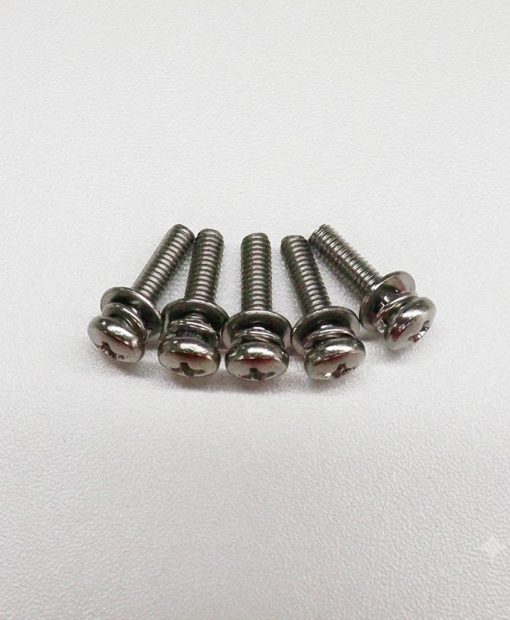

Shenhu’s DIN 7985 pan head screws combine a stainless steel screw with pre-assembled flat and spring washers. This configuration reduces the number of individual components you need to handle during installation.
The large pan head increases the contact area and helps distribute clamping force. Shenhu’s design uses a head diameter approximately 15–20% larger than standard pan head designs, making it suitable for thin sheets, delicate surfaces, and precision assemblies.
Key specifications include:
- Thread sizes: M3–M10
- Screw length: 6–80 mm
- Thread tolerance: 6g
- Materials: 304, 316, and optional 316L stainless steel
- Flat washer thickness: 0.8–2.0 mm
- Flat washer flatness: ≤0.02 mm
- Spring washer opening width: 1.2–3.0 mm
- Thread angle deviation: ≤±1°
- Coaxiality of screw and washers: ≤0.25 mm
These specifications give you greater control when integrating fasteners into automated assembly lines or repeat-production environments.
Stainless Steel Pan Head Screws: 304 vs. 316
Material selection directly affects service life, particularly when you use stainless steel pan head screws outdoors or in corrosive environments.
| Feature | 304 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Typical use | Industrial, electronics, appliances | Marine, outdoor, chloride-rich environments |
| Chromium | ≥18% | Chromium-based stainless steel |
| Nickel | ≥8% | Nickel-based stainless steel |
| Molybdenum | — | ≥2% |
| Tensile strength | ≥520 MPa | ≥515 MPa |
| Yield strength | ≥205 MPa | ≥170 MPa |
| Salt spray resistance | >72 hours | >200 hours |
| Corrosion resistance | High | Higher in chloride-rich conditions |
For applications with stronger corrosion requirements, Shenhu also offers 316L stainless steel, with a stated salt spray performance of ≥500 hours.
Therefore, you can select 304 for general industrial applications and consider 316 or 316L when exposure to moisture, salt, or chloride-rich environments creates greater corrosion risk.
Pan Head Screws with Flat and Spring Washers
A pre-assembled fastening set can simplify procurement and installation. Shenhu secures the washers through thread rolling so they remain in position during transportation and assembly.
This approach can help you:
- Reduce loose-component handling.
- Minimize washer installation errors.
- Improve assembly consistency.
- Support automated production processes.
- Reduce the risk of missing components during maintenance.
The spring washer also contributes to resistance against loosening under vibration. Shenhu reports verification through 1,000 vibration cycles at 10–50 Hz with 0.5 mm amplitude.
How to Select the Right Pan Head Screws
Before ordering corrosion-resistant pan head screws, you should evaluate the complete application rather than choosing only by diameter.
- Define the thread size: Select M3–M10 according to the mating component and required load.
- Confirm the screw length: Check material thickness, washer stack height, and required thread engagement.
- Select the stainless steel grade: Use 304 for general environments and consider 316/316L for higher corrosion exposure.
- Check washer requirements: Confirm flat washer dimensions and spring washer configuration.
- Review operating conditions: Consider vibration, moisture, salt exposure, temperature, and installation method.
- Verify production requirements: For large-volume orders, confirm dimensional tolerances, packaging, inspection, and customization requirements.
This process helps you avoid over-specifying the fastener while ensuring the final assembly meets its operating requirements.
Why Shenhu for Stainless Steel Fasteners?
Shenhu has manufactured fasteners since 1984 and now operates more than 100 advanced machines, with annual production capacity exceeding 500 million pieces.
Its quality system includes:
- IATF16949 for automotive-related quality management.
- ISO9001 quality management certification.
- ISO45001 occupational health and safety management certification.
- EU RoHS compliance for applicable products.
- Full-process quality control from production through delivery.
- Standard and custom fastener manufacturing capabilities.
The company also expanded its production capacity with a 10,000 m² facility in Jiangmen and a logistics hub in Shenzhen. This infrastructure allows Shenhu to support both standard products and customized industrial fastening requirements.
Applications of Pan Head Screws
You can use these metric stainless steel pan head screws across applications where corrosion resistance, controlled dimensions, and reliable assembly matter.
Common applications include:
- Automotive components
- Electronic equipment
- Home appliances
- Mechanical equipment
- Marine equipment
- Furniture hardware
- Outdoor equipment
- New energy and energy storage equipment
For export-oriented manufacturers, Shenhu can also provide neutral packaging and customized branding options according to project requirements.
FAQ
1. What are DIN 7985 pan head screws used for?
DIN 7985 pan head screws are commonly used for general machine and equipment assembly. Their rounded head provides a larger bearing surface, while the stainless steel versions offer improved corrosion resistance.
2. Should you choose 304 or 316 stainless steel?
Choose 304 stainless steel for general industrial environments. If your application involves marine exposure, salt, moisture, or chloride-rich conditions, 316 stainless steel provides stronger corrosion resistance.
3. Can Shenhu supply pan head screws with pre-assembled washers?
Yes. Shenhu supplies DIN 7985 screw assemblies with pre-assembled flat and spring washers. This configuration is designed to simplify handling and improve installation consistency.
Conclusion
Choosing the right pan head screws means matching the DIN standard, dimensions, material, washer configuration, and operating environment to your application. With M3–M10 sizes, 304/316/316L stainless steel options, controlled 6g threads, pre-assembled washers, and documented production capabilities, Shenzhen Shenhu Fasteners Industrial Co., LTD provides a practical solution for industrial and outdoor fastening requirements.
Need a specification-matched quote? Send Shenhu your required diameter, length, stainless steel grade, washer configuration, quantity, and application environment. The technical team can then recommend the appropriate DIN 7985 stainless steel pan head screws and discuss customization, packaging, and bulk production requirements.
